The devil's in the details

Knowing that I generated the password with xkcdpass,⁴ I found that by default, the eff-long wordlist must've been used, meaning 7776 options for what the password could be. If I wanted to be fancy, I could try using word2vec to sort the wordlist and incorporate the vague knowledge I still had about the missing word, but that's very much not worth the effort when up against mere 13 bits of entropy — even when key stretching is in your way.

The next step was to figure out where the Bitwarden client stores the data, and how the relevant cryptography works. In my case, I was using the Firefox browser extension — if you find yourself in a similar situation, but your setup is different, then you're gonna have to be a bit more creative.

Since browser extensions are written in the typical combo of web technologies, I deduced that there must be a way to open the browser dev tools in the context of the extension.

However, looking for "open inspect element in context of web extension" is kinda difficult. Search engines just seem to assume you're looking for some extension for your browser that will "improve" your inspect element experience in some way.⁵

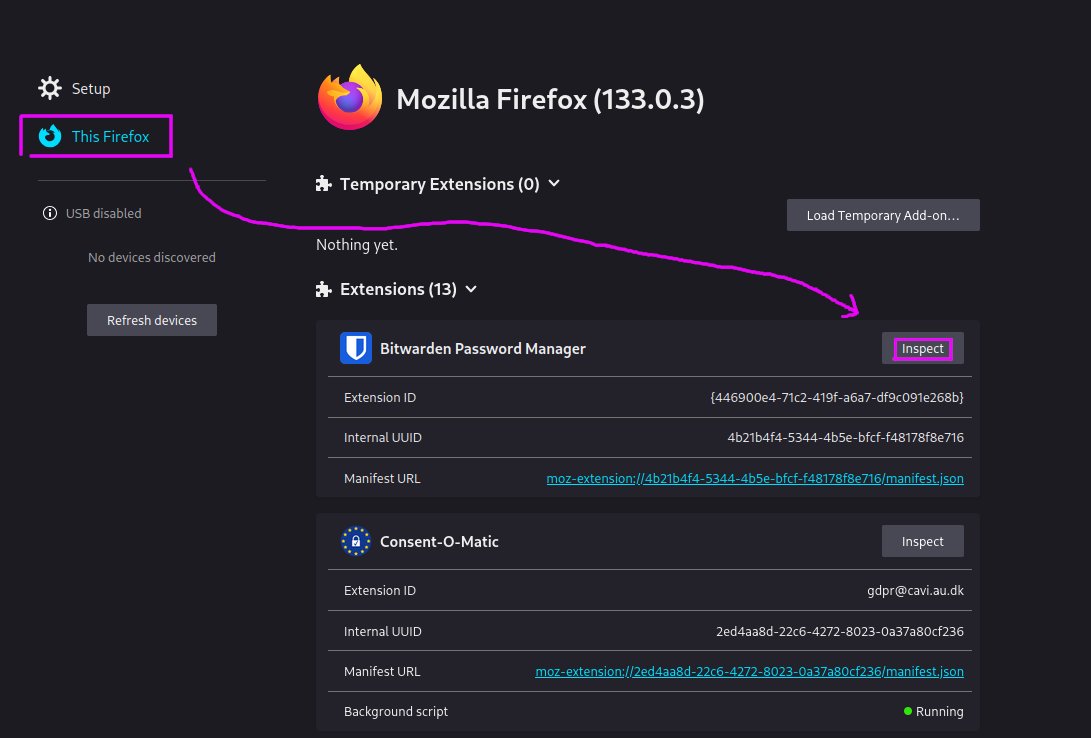

But I managed to stumble through it and find it anyway. The relevant option is in about:debugging:⁶

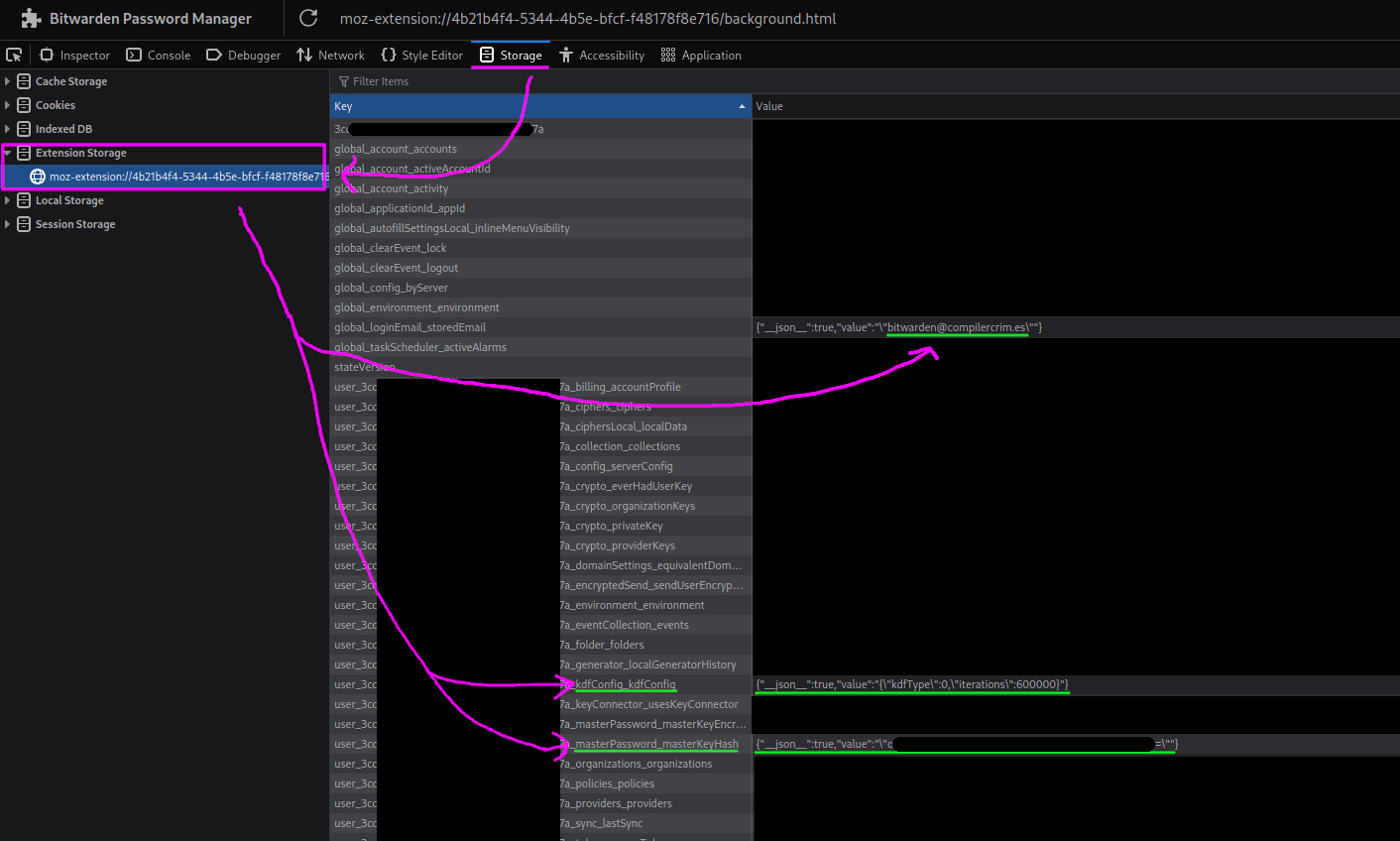

This lets you find all the necessary data:

• the e-mail for the account, which is being used as the salt
• the kdfConfig, which specifies what algorithm is being used to hash the password and its parameters
• the masterPassword_masterKeyHash, which allows verifying if you have the right password

I created a file, data.py, in which I collected the pieces:

masterKeyHash = "o<redacted>="
email = "bitwarden@compilercrim.es"
kdfType = 0
iterations = 600000
known = "known parts of the %s passphrase"

Next came spelunking through the code to find out how exactly the underlying cryptography works. The relevant code entrypoint is verifyUserByMasterPassword in user-verification.service.ts. The computation has two parts:

• first, the password goes through key stretching to derive the masterKey. This is handled by makeMasterKey. The underlying deriveKeyFromPassword can use either PBKDF2 or Argon2id, depending on the kdfConfig.
• the masterKey is then quickly hashed a further 2 iterations of pbkdf2, using the original password as a salt, and the result is compared with the stored masterPassword_masterKeyHash to decide whether the password is actually correct.

All in all, this looks like a reasonably typical approach. The key stretching helps slow down brute-force attacks, and after the master key is calculated, we derive a hash to check if the password is correct, without having to do weird things like trying to decrypt random stuff just to see if the resulting plaintext looks vaguely okay.

But, two iterations of pbkdf2 is quite a weird hash to use, don't you think? Why two?

When the cryptographic spider sense is tingling

If you've taken a look at the code yourself, you'll have noticed that hashMasterKey chooses between one and two iterations depending on the circumstances:

• two iterations are used to derive the masterPassword_masterKeyHash which gets used to check the password locally;
• on the other hand, one iteration is used to derive a hash that's used to authenticate with the Bitwarden server.

The goal here is to achieve domain separation — you wouldn't want to be able to use the locally-stored hash to authenticate with the server. On the other hand, going the other way probably isn't useful, so something like this should be fine, right?

Well, as far as domain separation goes, this is quite a crude way of achieving it. The iterations parameter of PBKDF2 has not been designed for this, and the security of this approach depends on the internals of PBKDF2.

For example, if you have the one-iteration and two-iteration hashes, does that let you check a password guess without having to run the expensive key-stretching?

But you might say, "when would that even matter? in what situation do you have both hashes, but not the password itself?"

Well, there could be a threat model where this matters. Consider the following scenario:

• a state actor wants your passwords
• they gain access to the Bitwarden server and capture the server-side hash when you authenticate (e.g. to sync the data with the server)
• then, they raid your home and grab your machines
• the vault happened to be locked, but the machines themselves were powered on, and so they get the local hash as well.

Does this let them perform the brute-force 600k times faster? Having stared at the definition of PBKDF2 for a while, I determined that effectively, we get the following relationship between the data:

HMAC(masterKey, serverHash) ^ serverHash == localHash

So, if you have a guess for what the masterKey could be, you can check it quickly. But that's pretty useless — you pretty much have no hope of guessing the masterKey, other than by brute-forcing the password itself.

What saved the day here is that Bitwarden chose to compute the derived hashes by invoking PBKDF2(password: masterKey, salt: userPassword, iterations). Had they chosen to write it as PBKDF2(password: userPassword, salt: masterKey, iterations), we'd have a cute little cryptographic backdoor... of an impact that, admittedly, depends on your threat model.

TL;DR: Please don't use the iterations parameter of your KDF to achieve domain separation. That's basically the cryptographic equivalent of playing with fire, and you only get to do that if you're setting a CTF challenge.

Don't stress out your pet cryptographers.

Back to the realm of the living

Having managed to climb out of the rabbit hole that once again swallowed me whole the moment I briefly let my guard down, I whipped up a quick Python script to actually do the thing I wanted to do in the first place, and brute force the part of the password I had forgotten:

from data import *
from base64 import *
from hashlib import pbkdf2_hmac
from xkcdpass import xkcd_password

wordfile = xkcd_password.locate_wordfile()
with open(wordfile) as f:
    wordlist = list(map(str.strip, f))

assert kdfType == 0 # PBKDF2_SHA256

salt = email.encode()
keyhash = b64decode(masterKeyHash)

for i, guess in enumerate(wordlist):
    if i % 10 == 0: print('#', i)
    password = (known % guess).encode()

    masterKey = pbkdf2_hmac('sha256', password, salt, iterations)
    masterKeyHash = pbkdf2_hmac('sha256', masterKey, password, 2)

    if masterKeyHash == keyhash:
        print(guess)
        break

I mentally prepared myself for it to fail the first couple times, since that's always how it is when you're dealing with cryptography. Debugging that is always fun.

This time though, it worked perfectly, first try.

I looked at the output, which told me what the missing word was.

"Oh, of course. How did I ever forget that in the first place?"

Proof-read by dmi. Thanks! :3
